This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.

Feature highlights:

The MJ-45YA sliding table saw machine features a 2800/3000/3200x375mm aluminum sliding table, 80mm thickness of cutting saw, and spindle running speeds of 4500/6000rpm.

The machine offers precise cutting with manual tilting (0°-45°) and height adjustment, a stable internal structure, Ideal for woodworking in furniture, cabinet, and door making.

Model	MJ-45YA	MJ-45YAS	MJ-45YZ	MJ-45YZS	MJ6132D
Sliding table width	375mm	375mm	375mm	375mm	375mm
Maximum sawing length	1600/2800/3000/3200mm	1600/2800/3000/3200mm	2800/3000/3200mm	3000/3200mm	3200mm
Vertical sawing height	70mm	70mm	70mm	80mm	80mm
Longitudinal guide ruler travel	1200mm	1250mm	1300mm	1300mm	1300mm
Lifting type of main saw	hand-actuated lifting (update optional)	hand-actuated lifting (update optional)	Electrical lifting	Electrical lifting	Electrical lifting
Digital display	Dial display	Dial display	Digital display	Digital display	Digital display
Tiltable range	0-45°	0-45°	0-45° （update electrical tilt optional）	0-45° （update electrical tilt optional）	0-45° （update electrical tilt optional）
Power of main saw	4KW	5.5KW	5.5KW	5.5KW	5.5KW
Size of main saw	300 Φ30mm	300 Φ30mm	300 Φ30mm	300 Φ30mm	400 Φ30mm
Power of auxiliary saw	0.75KW	1.1KW	1.1KW	1.1KW	1.1KW
Size of auxiliary saw	120 Φ20mm	120 Φ20mm	120 Φ20mm	120 Φ20mm	120 Φ20mm
Total power	4.75KW	6.6KW	6.6KW	6.6KW	6.6KW
Dimension of machine	28503150890mm	30503150890mm	30503150920mm	32503150920mm	32503150920mm
Net weight	450KG	560KG	650KG	680KG	750KG
Length of machine body	1800mm	1950mm	1950mm	1950mm	1950mm
Width of machine body	1000mm	1000mm	1000mm	1000mm	1000mm
Thickness of machine body	4mm	5mm	5mm	5mm	6mm+table 10mm
Structure of machine body	Steel plate	Steel plate	Square tube	Square tube	Square tube
Cast iron table size	995*550mm	1020*635mm	995*550mm	1020*635mm	910*620mm
Large auxiliary working table	720*480mm	700*655mm	970*775mm	1020*760mm	915*800mm
Small auxiliary working table	600*475mm	580*550mm	780*605mm	580*550mm	780*605mm
Large Sliding Fence length	1650mm	1650mm	1750mm	1800mm	1800mm
Aluminum alloy baffle	1150mm	1150mm	1150mm	1150mm	1150mm
Template Shaft diameter	40mm	40mm	40mm	45mm	45mm
Template Shaft length	1300mm	1300mm	1300mm	1500mm	1500mm

①Thickened machine bed-----90 degree body 190cm.45degree body 195cm.

To ensure the stability of the whole machine,reduce vibration,improve the service life and cutting accuracy,the internal structure of the machine bed adopts new design to ensure the stability of the machine operation.

②high precision double layer chrome-plated round bar push table

At 90 degrees,330mm double-layer push table is adopted.

At 45 degrees,The bearing capacity of 375mm double-layer push table is increased to 150KG.The push table adopts chrome-plated round bar structure with high positioning accuracy,long service life and smooth push.

③high performance mute pure copper motor

The default main motor 4KW,auxiliary motor 0.75KW total power,if you need to cut tough solid wood and other plates.

④ European-style large ruler

The ruler adopts the European-style large ruler,which is stable and soes not shift,and effectively guarantees the plate.

Precision in the cutting process; the mold base (also known as the backer) uses a new internal .The stable structure ensures the stability and smoothness of the backer.

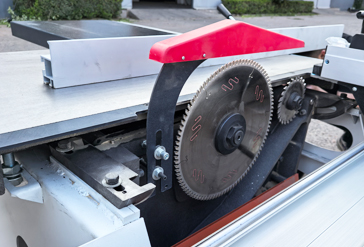

⑤Double saw blade---effectively prevent edge collapse

The machine adopts a double saw blade structure.The small saw blade is responsibility for scribbling and the large saw blade is responsible for opening the board so that the cutting board will not produce edge chipping and burrs.

⑥ Dust cover---used to keep the saw blade clean and protect the user's safety, avoid touching the saw blade.

Suitable for cutting MDF,Particleboard,PVC board,plywood.ABS board,solid wood board,organic glass board.
