Equipped with a 9KW air-cooling spindle for efficient performance, it ensures quiet operation and longevity. The machine integrates a LNC control system for easy operation and compatibility with various CAD CAM software, enhancing productivity across woodworking, advertising, and art industries.

Feature highlights:

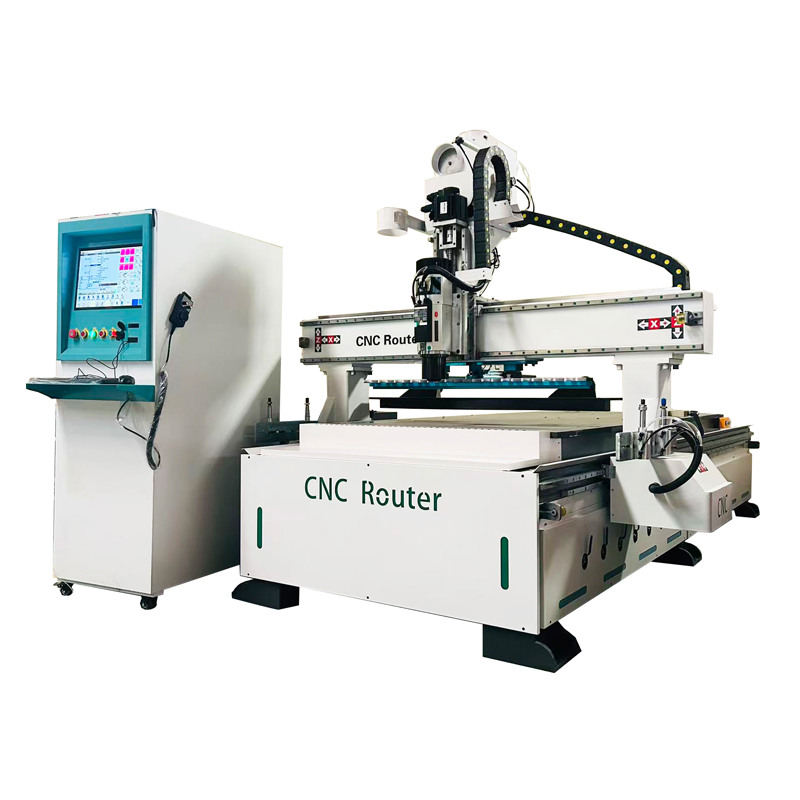

The 1328 ATC 3D Wood CNC Router features an steel welded bed for long-term stability and precision, supported by High-precision square rails for high accuracy and minimal wear. Equipped with a 9KW air-cooling spindle for efficient performance, it ensures quiet operation and longevity. The machine integrates a LNC control system for easy operation and compatibility with various CAD CAM software, enhancing productivity across woodworking, advertising, and art industries.

XYZ travel range	1300mm2800mm200mm

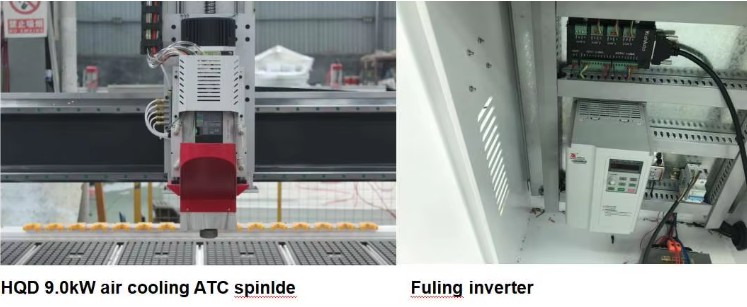

Spindle power	9kW high-power air-cooled tool change spindle
Spindle speed	6000-24000 rpm
Repeat positioning accuracy	±0.02mm
cutting speed	0-18000mm/min

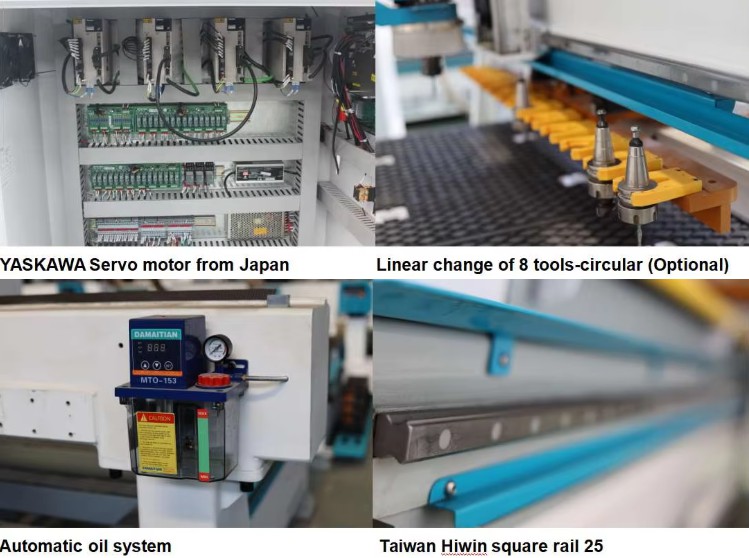

Guide rails	Taiwan high-precision 25mm linear guides for precision and durability.
Drive type	TAIWAN LNC 1.5kW servo motor drive (complete set) + reducer
Transmission type	High-precision ground helical gear transmission on the X and Y axes, and high-precision TBI lead-screw drive on the Z axis.
Tabletop	The vacuum adsorption table has 6 partitions, 24 holes, and a high-strength work surface to enhance vacuum adsorption and improve work efficiency.
Positioning	3+2 positioning air cylinders
Dust collect	3KW double-tube vacuum cleaners
Vacuum pump	4.5KW Water circulation vacuum pump
Lubrication system	Automatic lubrication system
Tool setting	Automatic Tool setter
Control system	Taiwan LNC system
Control cabinet	independent
Design Software	Artcam,Type3,CAD,CDR,JDPaint,Ucancam
Carving Instructions	G Code/U00/mmg/plt/HPGL
Positioning	3+2 positioning cylinders
Pushing device	Automatic unloading, secondary dust removal
Safety system	Safety mechanical limit
Tool setting	Floating automatic tool setter
Tool holder	12-tool holder
Voltage	AC380V/50HZ
Device dimensions	225036002000mm
Machine bed	The bed (heavy-duty) is machined in a machining center. A precision five-sided milling machine completes the process in one operation, ensuring bed accuracy.

Board funiture, cabinet wardrobe, office furniture, custom fumiture, wardrobe, cabinet body, computer desk, wooden audio, wooden kitchenware and other board furniture plane cutting,milling,Edge, hole carving and other auxiliary processing.
